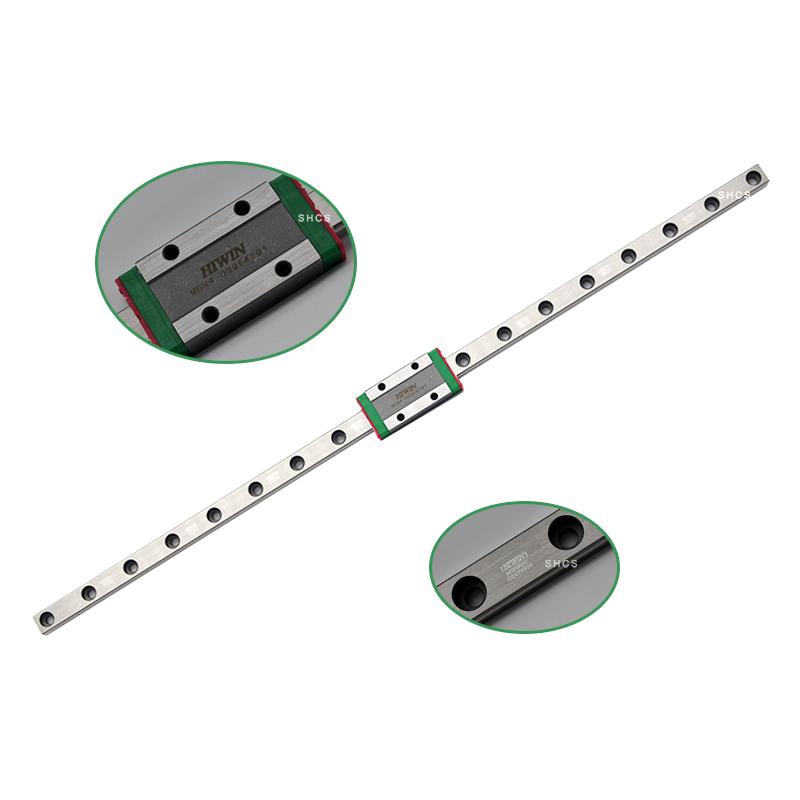

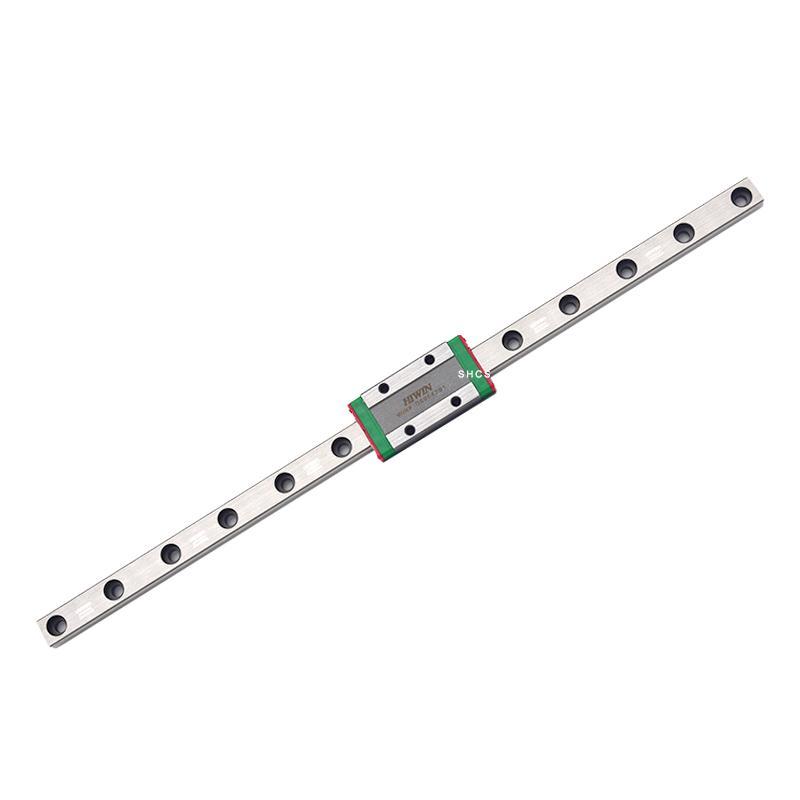

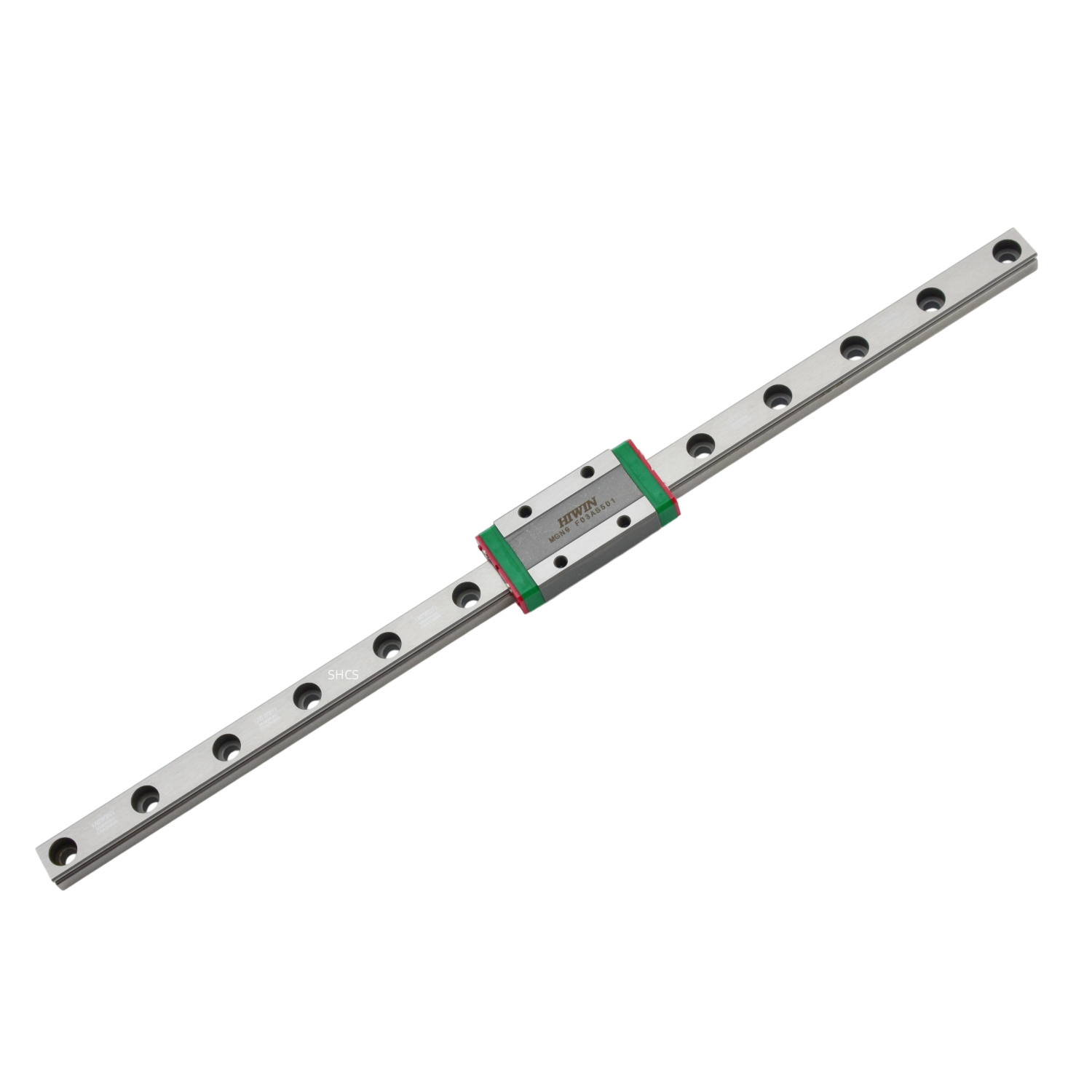

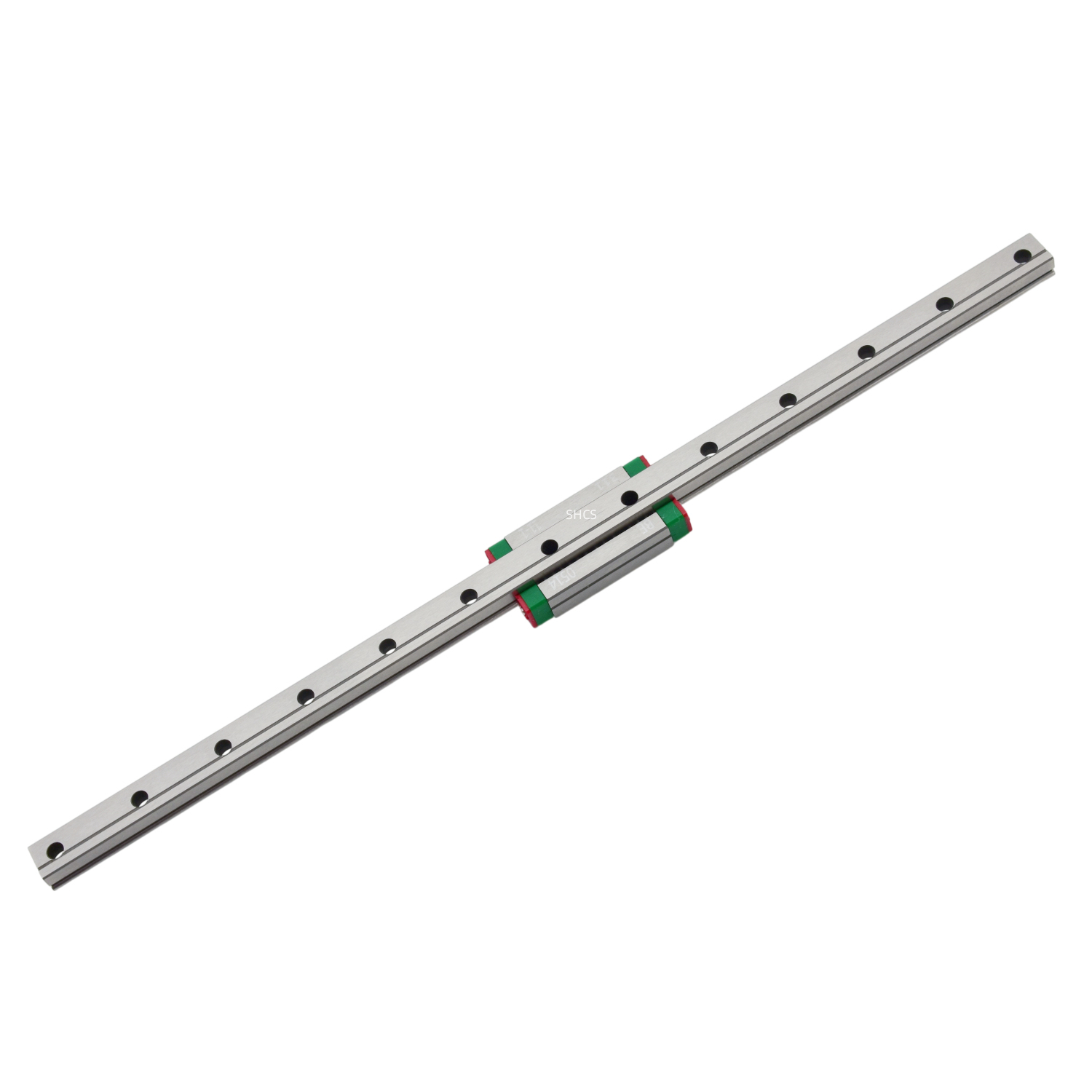

HIWIN MGN9H Z1 Stainless Steel Linear Rail with Block

Upgrade Your 3D Printer with HIWIN MGN9H Z1 Stainless Steel Linear Rail

Eliminate play and dampen micro-vibrations with genuine HIWIN MGN9H Z1 linear guides.
Featuring Z1 preload, these rails offer zero backlash and high stiffness to deliver Precision Extrusion , smooth motion, and superior print surface finish for your 3D printer.

Packing List:

• 1 x HIWIN Linear Rail
• 1 x HIWIN MGN9H Block

Specifications:

• Brand: HIWIN
• Model: MGN9H (Block labeled "MGN9")
• Preload: Z1 (Light Preload)
• Precision Class: C
• Material: Stainless Steel (martensitic stainless steel)
• SKU: HIWIN MGN9H Z1
• Rail Cutting Tolerance : 1-2 mm (default negative tolerance)
• Linear rail cutting process: Wire EDM Cutting
• Block: Pre-installed on the Rail
• Country of Origin: Made in Taiwan

Customized /Wholesaler HIWIN MGN9H Z1 Stainless Steel Linear Guide Rail and Block

Need other rail lengths or higher precision classes (e.g., Class H/MGN9HZ1HM)?
We offer custom length cutting and bulk pricing for OEM/B2B buyers. Feel free to Contact us or request a quote!

Frequently Asked Questions (FAQ)

Q: Is the block pre-installed?
A: Yes,the MGN9H carriage block is pre-installed on the linear rail before shipment.

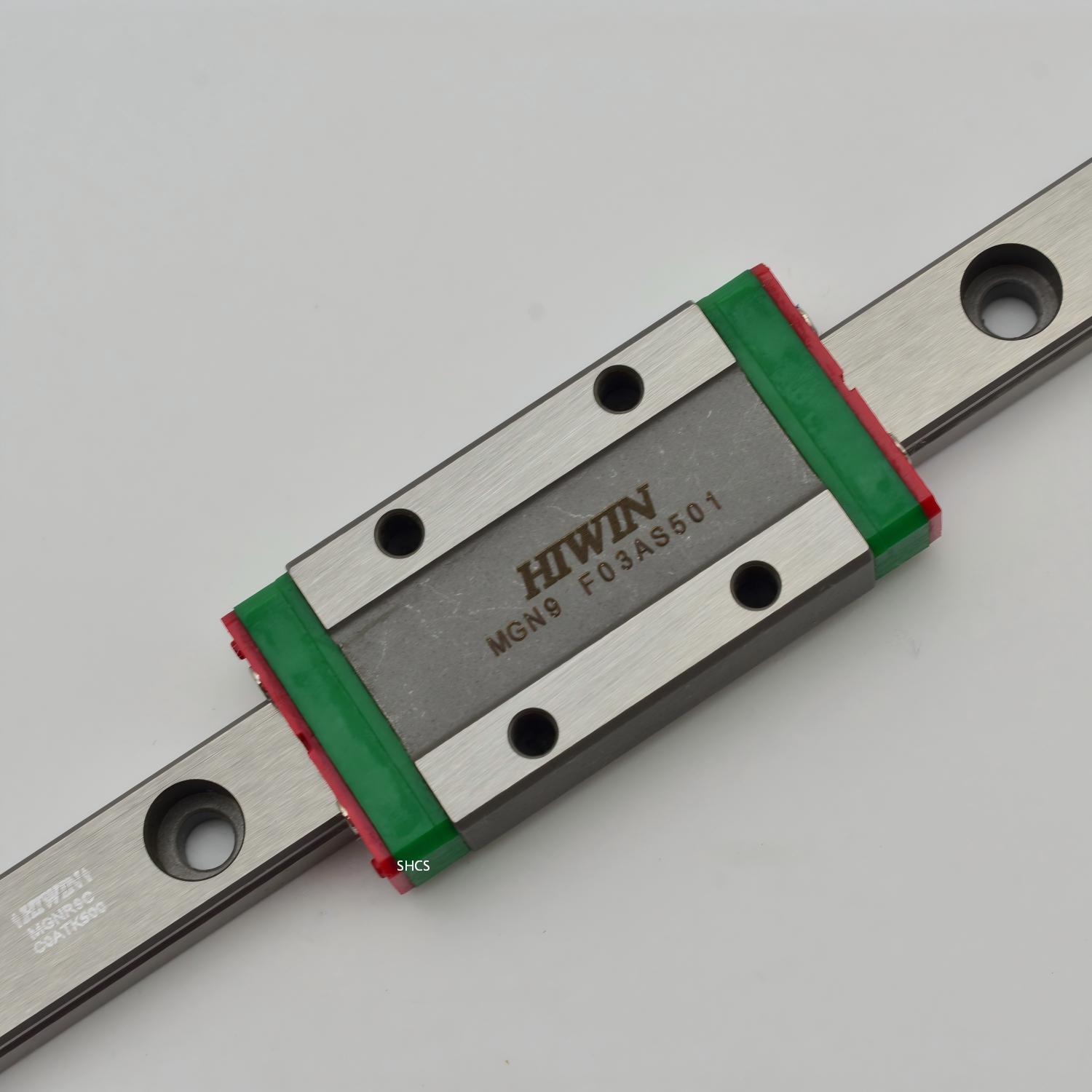

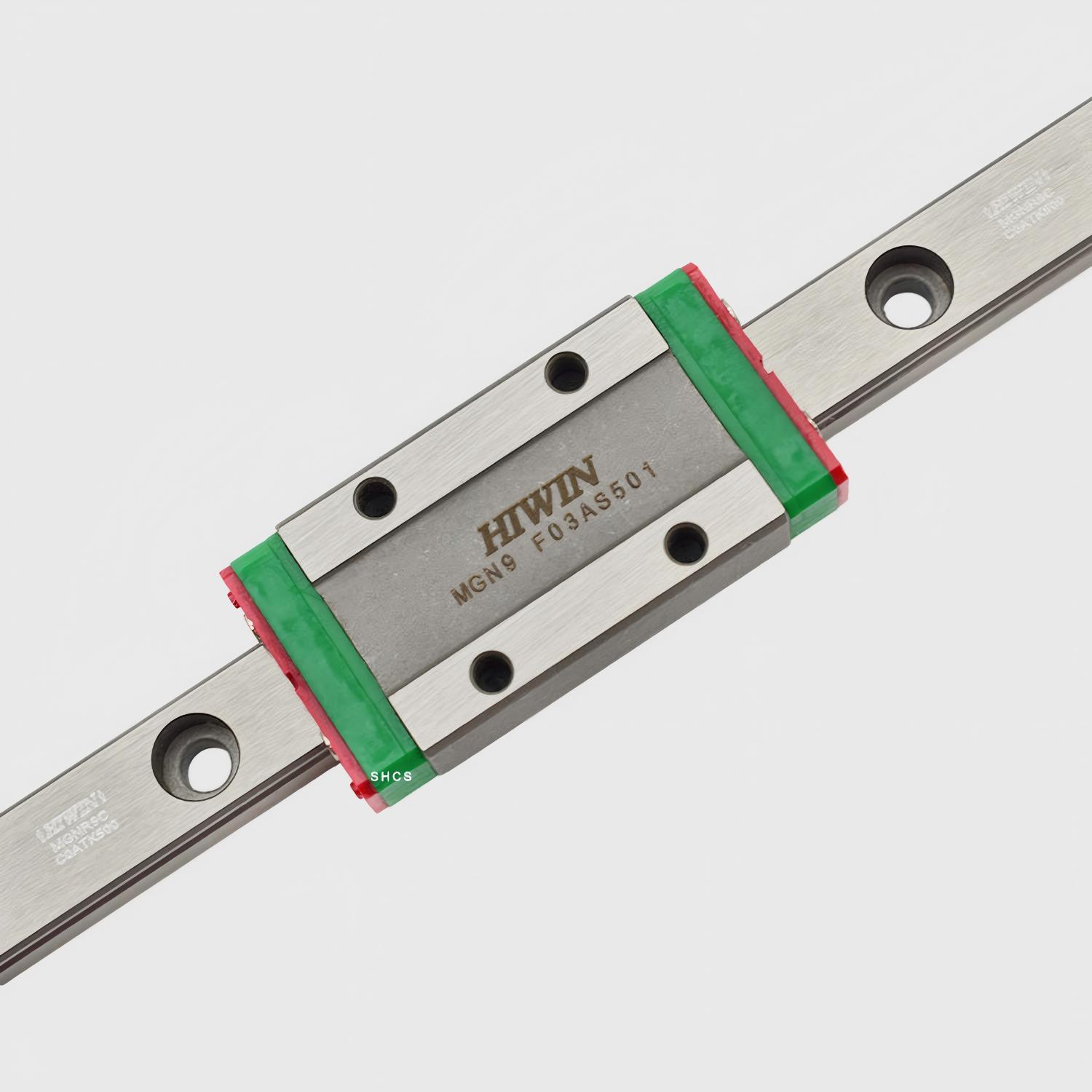

Q: Why is the block marked "MGN9" instead of "MGN9H"?
A: This is the latest official marking from HIWIN. The block performance, dimensions, and load capacity remain Same.
