MGN12H Stainless Steel Rails

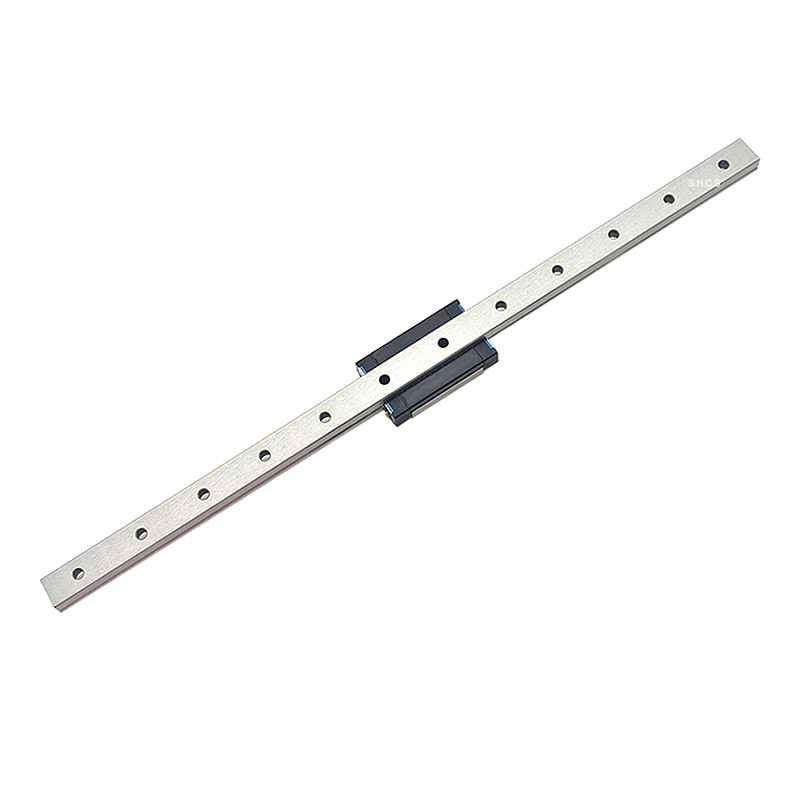

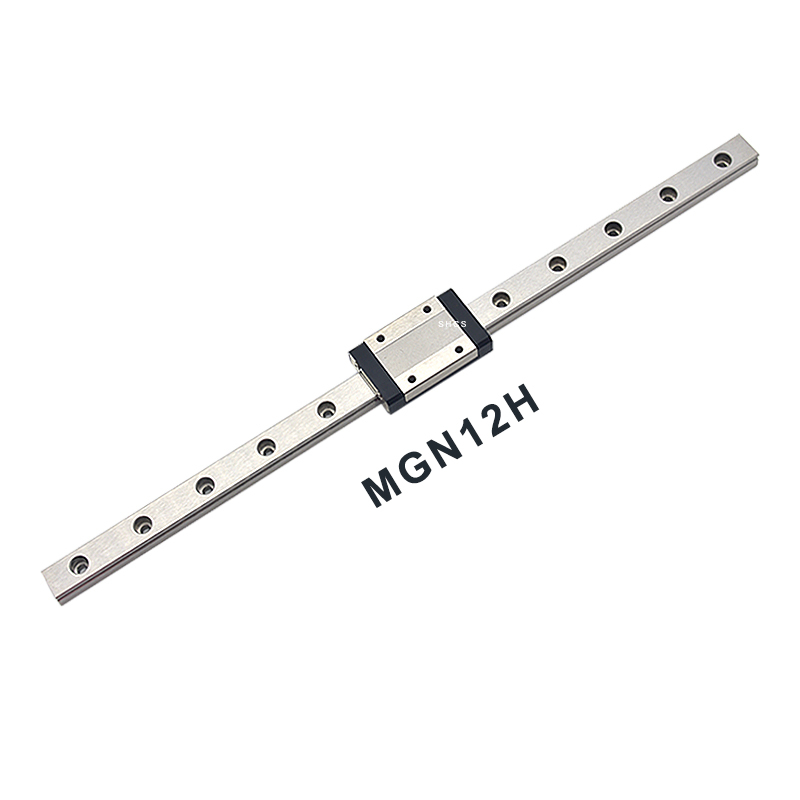

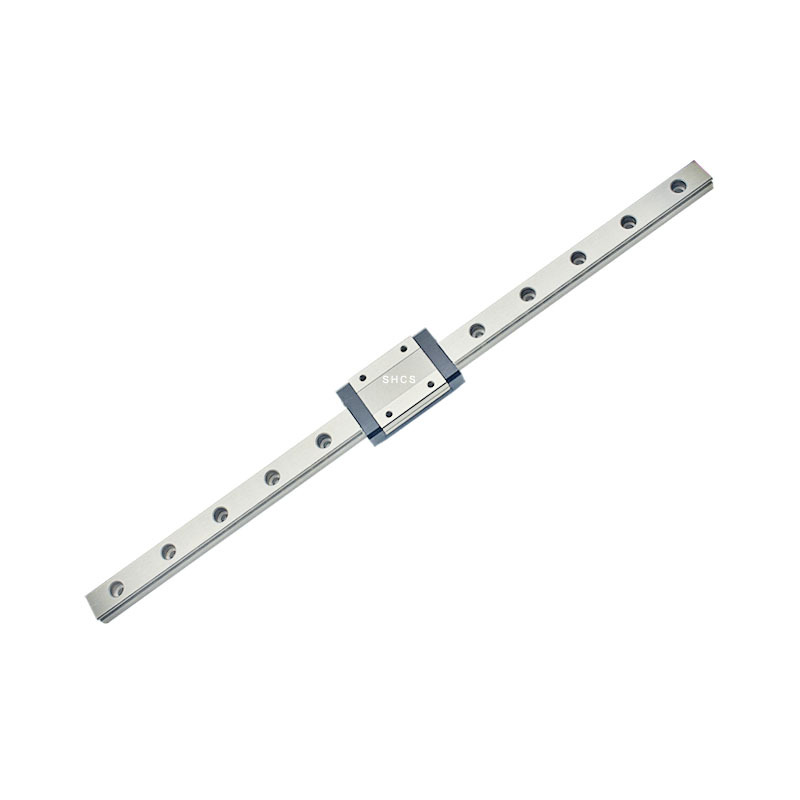

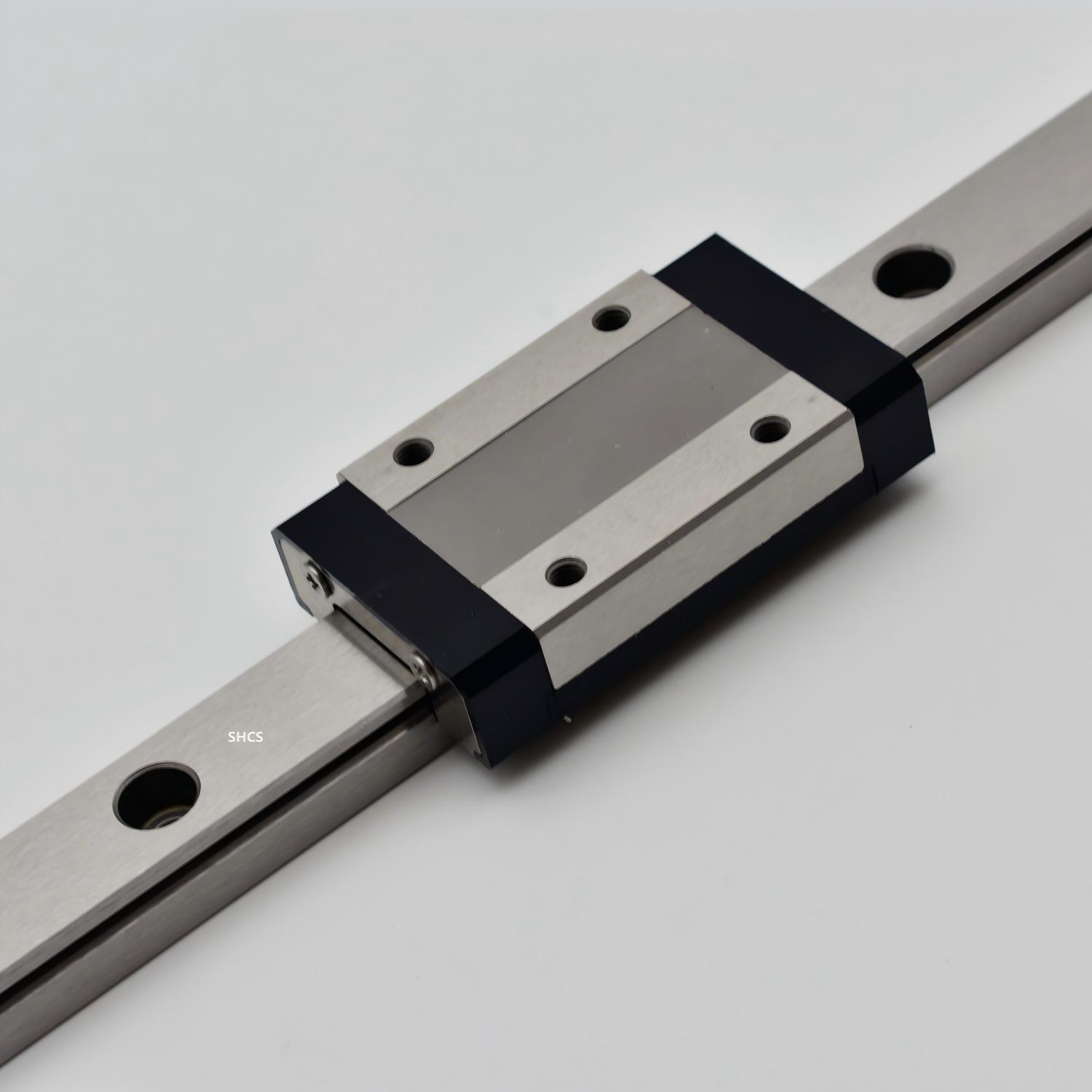

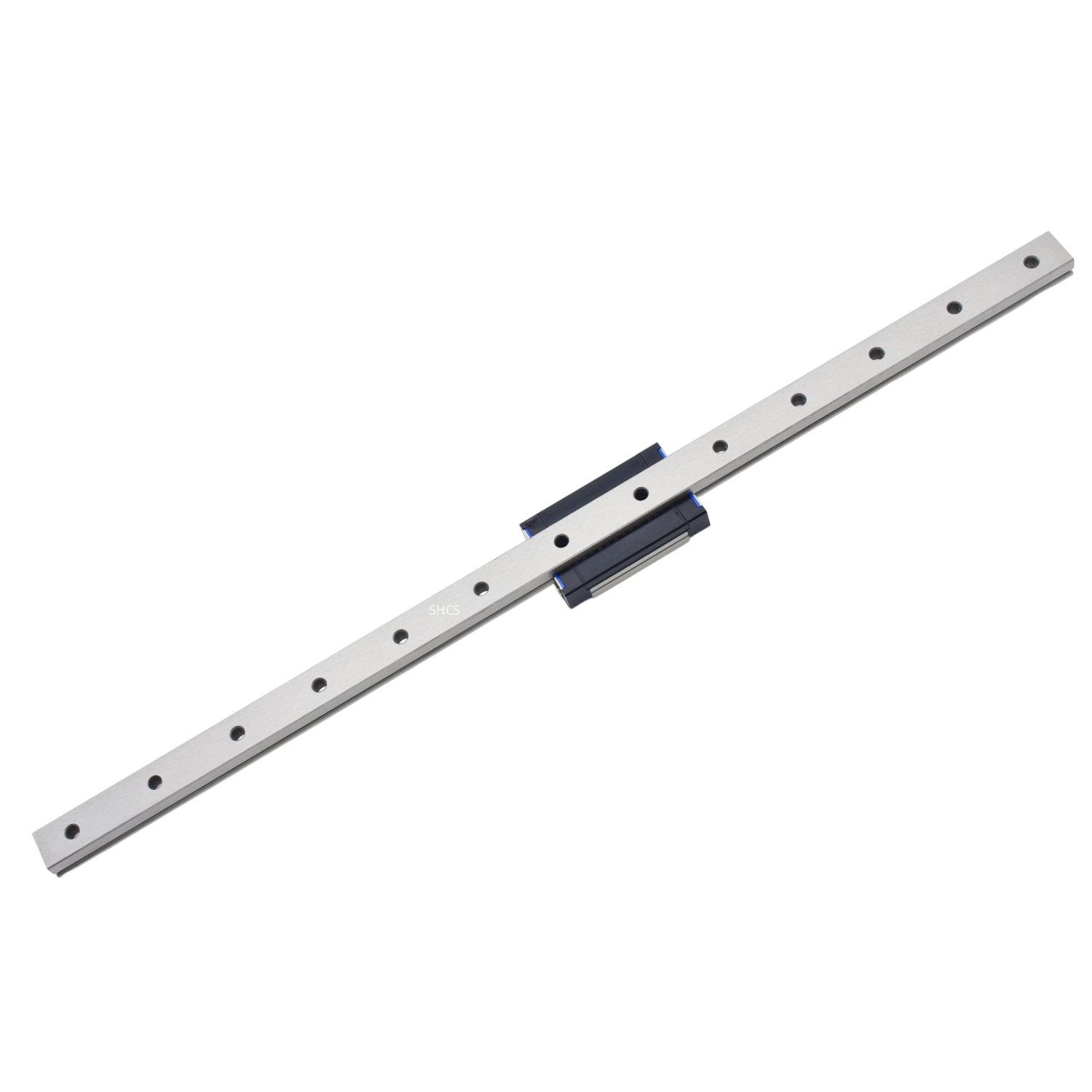

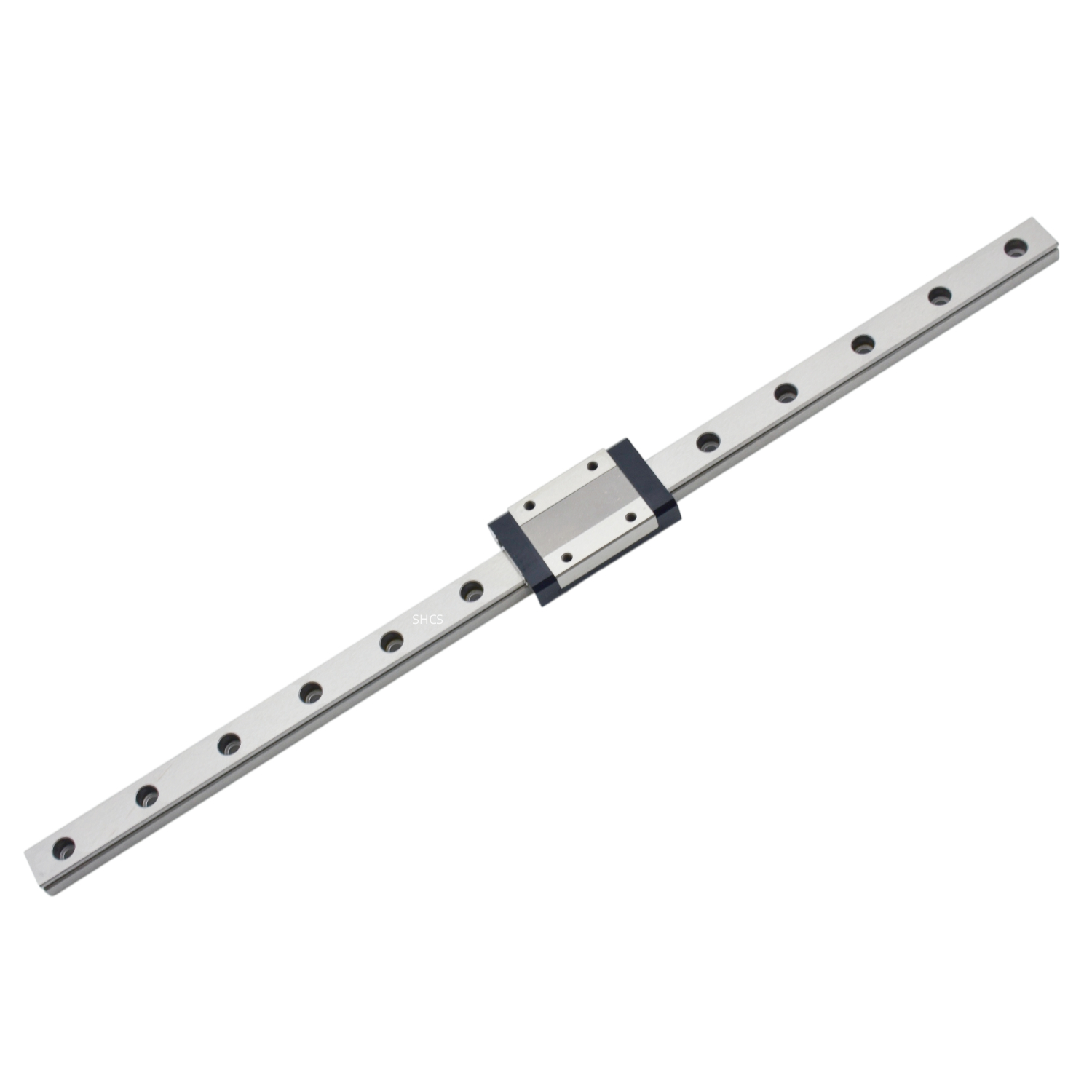

MGN12H 440C Stainless Steel Linear Guideway, Class H Precision Linear Rail with Carriage

Upgrade your 3D printers with SHCS MGN12H Stainless Steel Linear Rail. Built from high quality 440C stainless steel (including the rail, block, and balls),
this rail delivers durability, and consistent performance with minimal setup and adjustment,ensure long-lasting, smooth precision.

What’s Included (Packing List)

• 1 x MGN12H Stainless Steel Linear Rail
• 1 x Matching Carriage Block (Pre-installed)

Technical Specifications

• Brand: SHCS
• Model: MGN12H
• Precision: Class H (High Precision)
• Block Preload: Z1 / Z0

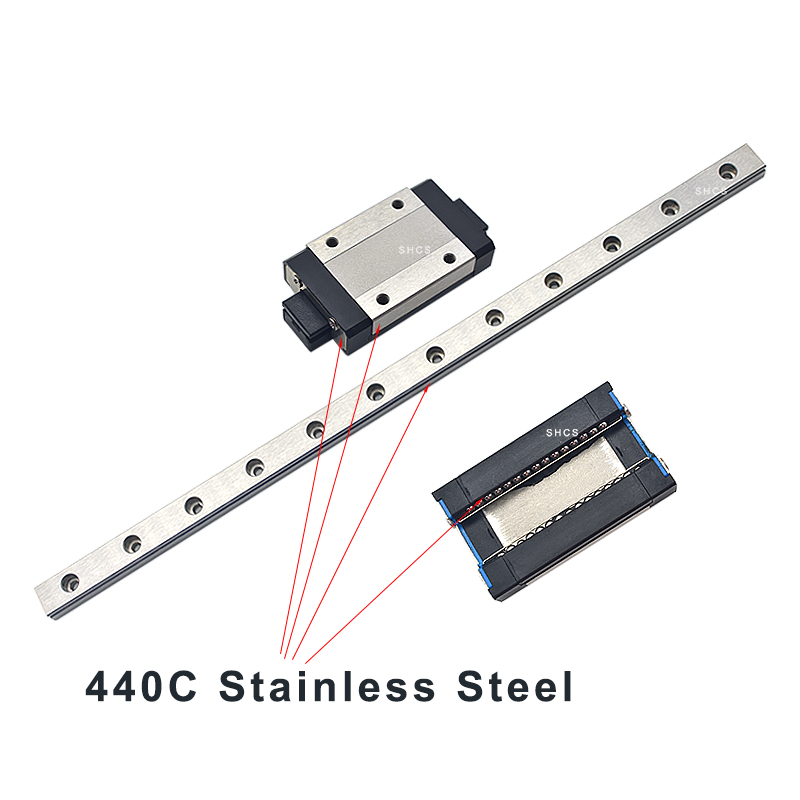

• Material: 440C Stainless Steel (Rail, Block, and Balls)

Key Features & Benefits

• 440C Stainless Steel : Rail, block, and steel balls are all crafted from high-carbon, high-chromium martensitic stainless steel for maximum rust prevention and wear resistance.
• Upgraded End Seals: Features advanced stainless steel block end seals to effectively keep out dust, debris, and filament scraps, ensuring a longer service life.
• High-Precision Class H: Delivers tight tolerances and reliable, repeatable motion under load.
• Widely compatible with popular DIY 3D printers: Like Voron, CoreXY,K1,K1 Max...... mini CNC routers, laser engravers, and automation equipment.

Important Notes & Installation Tips

• Pre-installed Carriage: The carriage block comes pre-installed on the rail. Do not remove the block from the rail, as this may cause the internal steel balls to dislodge and be lost.

Use a printed physical spacer/dummy rail ( the black plastic rail) if you need to slide it off during assembly.

• Brand Compatibility: Our blocks are precision-machined to fit our rails specifically. Mixing blocks and rails with other brands is not recommended to maintain smooth operation.
